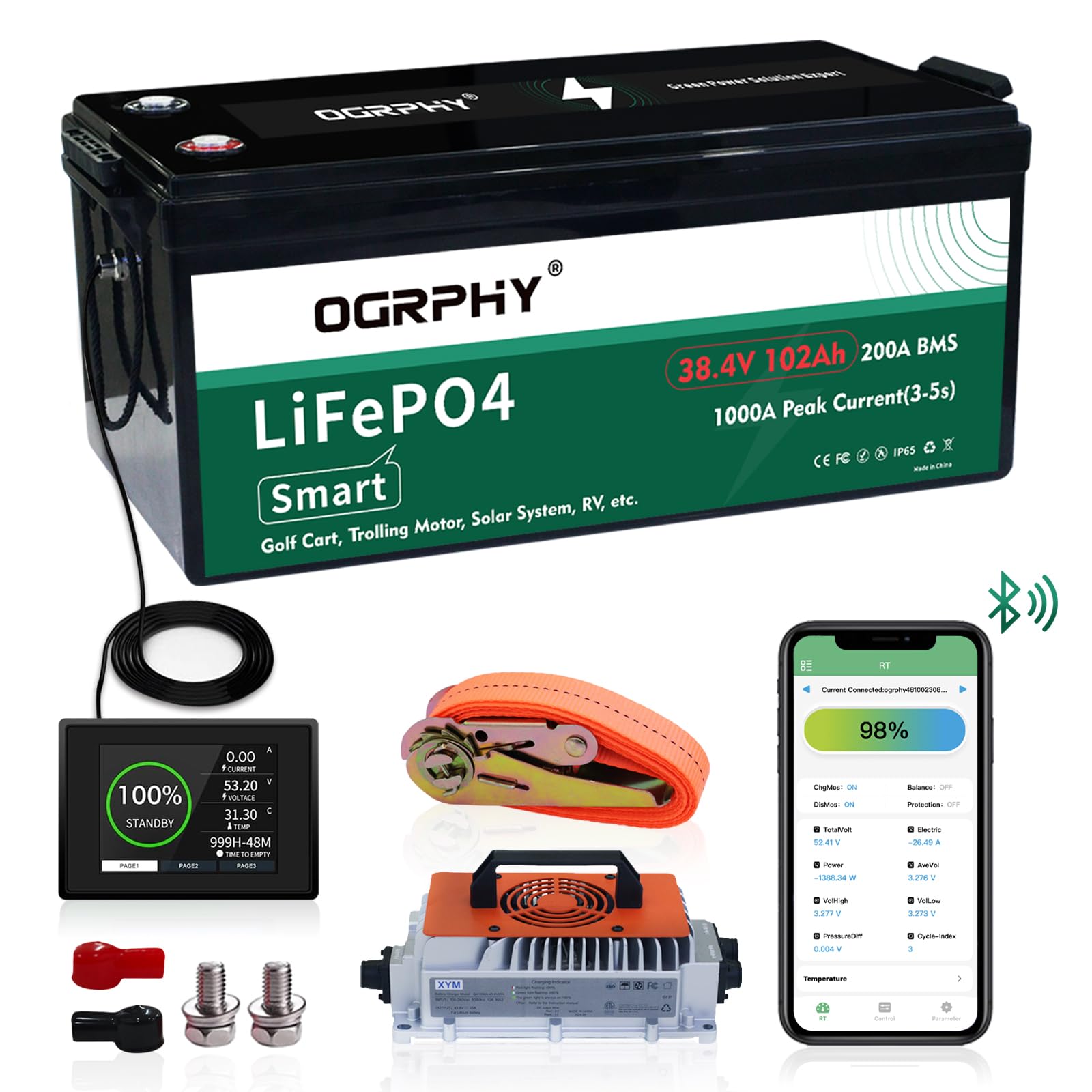

Product Description: Item name: OGRPHY 36V 102AH lithium golf cart battery conversion kit Nominal Voltage: 36V Charge Voltage: 42.6V - 43.8V Nominal Capacity: 102Ah BMS Board: 200A Energy: 3916.8Wh Max Load Power: 7.68KW Recommend Charging Current: 30A Max Continuous Discharging Current: 200A Cycle Life: 2000-4000 times WorkingTemperature: Charging Temperature:0C to 55? DischargingTemperature:-20C to 60? Weight: 66.1 lbs Dimension: 20.47 x 10.59 x 8.66 inch Recommend Solar Panel Configuration (Fully charges with effective sunshine4.5h/day): 900 W Wire(s) for Series & Parallel Connection/Loading: 4AWG What 's in the package: 1 x OGRPHY 36V 102Ah LiFePO4 battery with terminals 1 x OGRPHY 36V 25A lithium battery charger 1 x Touch Monitor & Monitor Cable & Monitor stand 1 x Retention strap 1 x Product Manual with warranty card. Depth of discharge(DOD) DOD 100%(charge 100%, and discharge 100%), the battery gets 2000 circles DOD 80%(charge 100%, and discharge 80%), the battery gets 4000 circles
Shipping & Delivery Policy
All orders from Onlinesportsmall are shipped in double boxes and come with full insurance for added protection. Items are typically shipped within 2-3 working days. Our company is based in the United States, and we use secure shipping methods. For your protection, we may contact you for additional order verification regarding the payment method.
Your product will be delivered to your doorstep, carefully packed to prevent any damage. We understand that some customers prefer discretion regarding package contents. To address this, we provide completely discreet packaging. Any product names, descriptions, sender’s names, or other identifying details are encrypted to ensure a fully discreet shipment.
Note: All orders above $250 will require a signature upon delivery.
Shipping Destinations
We currently ship within the United States.
Processing Time
Orders are processed within 1-3 business days.
Shipping Methods & Delivery Times
Domestic (U.S.): 5-8 business days.
Shipping Costs
Shipping costs are calculated at checkout based on the destination and shipping method. Free standard shipping is available within the U.S.
Customs, Duties, and Taxes
International orders may be subject to customs duties, taxes, or import fees, which are the responsibility of the customer. Please check with your local customs office for more details.
Order Tracking
Once your order is shipped, you will receive a tracking number via email to follow your order’s progress.
Lost or Delayed Shipments
If your package is lost or significantly delayed, please contact our support team, and we will assist you in resolving the issue.
Returns & Refunds
For details on returns and refunds, please refer to our Return Policy.
Contact Information
For any questions, feel free to contact our customer service team at:
-
Email: support@onlinesportsmall.com
-
Phone: +1 (832) 344-5453
Frequently Asked Questions
- Q: What is included in the OGRPHY 36V Lithium Golf Cart Battery Conversion Kit? A: The kit includes a 36V 102Ah LiFePO4 battery, a 36V 25A lithium battery charger, a touch monitor with monitor cable and stand, a retention strap, and a product manual with warranty card.
- Q: What is the cycle life of the OGRPHY 36V lithium battery? A: The OGRPHY 36V lithium battery has a cycle life of 2000 to 4000 times depending on the depth of discharge (DOD). At 100% DOD, it can achieve around 2000 cycles, while at 80% DOD, it can reach up to 4000 cycles.
- Q: What is the maximum continuous discharge current of this battery? A: The OGRPHY 36V lithium battery features a maximum continuous discharge current of 200A and can handle peak currents of up to 1000A for short durations.
- Q: Can I monitor the battery's performance? A: Yes, the battery can be monitored via a mobile app or through the included touch monitor, providing an intuitive way to check the battery's status while driving.
- Q: What is the recommended charging current for the battery? A: The recommended charging current for the OGRPHY 36V lithium battery is 30A.
- Q: What are the working temperature ranges for charging and discharging? A: The charging temperature range is from 0°C to 55°C, while the discharging temperature range is from -20°C to 60°C.
- Q: Is the OGRPHY battery safe for use in golf carts? A: Yes, the OGRPHY 36V lithium battery is designed specifically for golf carts and is made of high-density A-grade cells, with a fireproof, shockproof ABS case that is also IP65 waterproof.
- Q: How far can I expect to drive on a full charge? A: The OGRPHY 36V 102Ah LiFePO4 battery can power a golf cart with a 3KW motor for approximately 30 miles on a full charge.
- Q: What is the weight and dimension of the battery? A: The OGRPHY 36V lithium battery weighs 66.1 lbs and has dimensions of 20.47 x 10.59 x 8.66 inches.
- Q: What warranty does OGRPHY offer for their batteries? A: OGRPHY offers a 5-year warranty on all of their batteries, including technical support and online customer service.
