Description

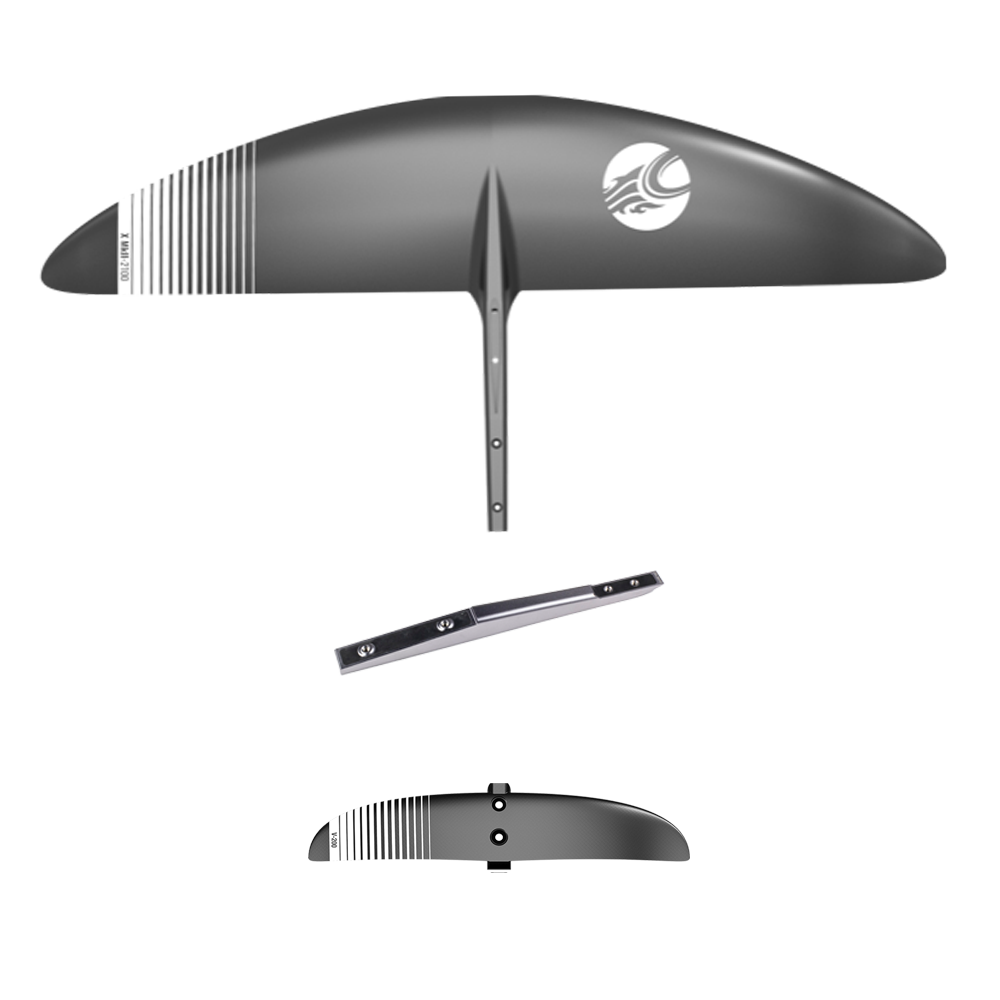

X1240 kit includes: Wing X1240 / Stabilizer V200 / Fuselage 346MM / Screw Set / T-nut Train / Torx Tool
X1650 Kit includes: Wing X1650 / Stabilizer V230 / Fuselage 346MM / Screw Set / T-nut Train / Torx Tool
When we introduced the X-Series wings, we took Cabrinha’s foil program to a whole new level. Through working alongside SINTEF and the University of Norway where we were able to fully breakdown and simulate hydrofoil performance in the world's largest cavitation tank. From this we have been able to further evolve the X-Series into the industry’s leading all round hydrofoil. Early lift, but with a high top speed has been achieved, and through refined tip shape and profile, you are able to break the tips free, but still be ready to carve into your next turn.
- Loose and agile
- All round lean profile
- Refined tip shape
- Tapered fit
- Torsional Stiffness
- Medium AR
- PMI core
- Pre Preg construction
- Modular
- Optimal efficiency and maneuverability
- Flat center, to downward tips, for perfect balance between locked-in feel and agility
- Single molded components for minimal drag
- Full prepreg carbon construction
- PMI core for superior strength to weight ratio
- NEW hollow fuselage for lightweight performance
- NEW insulated mounting surfaces for Improved durability and longevity
- Helicoils for superior durability and eliminating corrosion
- X1240- 1240cm^2 WS 870mm, AR 6.10, Chord 190
- X1650- 1650 cm^2, WS 1010mm, AR 6.18, Chord 220
- V2 00 cm², WS-360, AR-6.48
- V230 cm², WS-400, AR-6.96
- Fuselage(M) 346mm
