Description

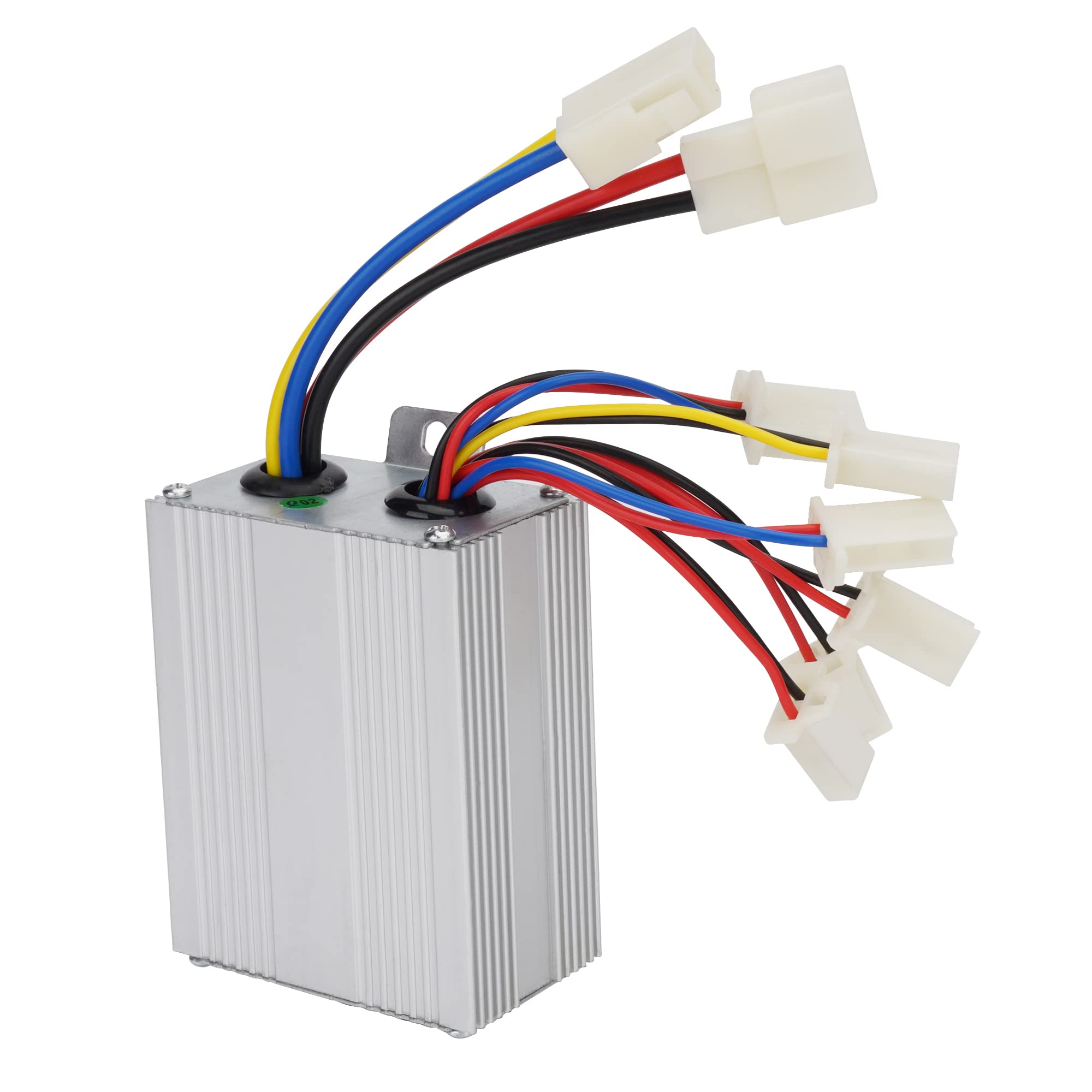

Work Voltage: 24Volts Matching Motor: Dc Brushed Motor Rated Motor Power: 500 Watts Under Voltage Protection: 20V0.5V Usable Motor: 24V500 Watts Speed Governor 1-4 V(Throttle ) Function: This Controller Is Uitable For Electric Bike Tricycle & Scooter This Is A Brush Motor Controller. Wires Interface Description: Yellow & Black(1) : Brake,Thin Yellow (Brake Signal)/Thin Black(Negative Power) Red & Black(2): Brake Light,Thin Red (Power Positive) /Thin Black (Power Negative) Red & Blue(3) : Key Switch(Power Locks),Thin Red(Vcc)/Thin Blue (If There Is No Power Locks,Red Connection To Blue) Red & Black(4) (Small Cable): Charging Port.Thin Red (Charge Input Power Positive) /Thin Black (Power Negative) Red & Black(5)(Small Cable) : Indicator Light.Thin Red (Indicator Power Output) /Thin Black (Indicator Negative) Red, Black & Blue(6): Speed Governor(Throttle ) Thin Blue(Speed Handlebar Signal Input) /Thin Black (Negtive Power) /Thin Red(1-4V Positive Power) Yellow & Blue(7) : Motor Connections,Thick Yellow (Motor Negative) /Thick Blue (Motor Positive) Red & Black(8) (Large Cable) : Battery Connections, Thick Black (Power Negative) /Thick Red (Power Positive)
