What are the dimensions of the bilge pump float switch?

The dimensions are three point nine four inches in length, one point one eight inches in width, and one point nine seven inches in height.

What material is the bilge pump float switch made from?

It is made from Acrylonitrile Butadiene Styrene, which is known for its strength and durability.

What voltage levels does the bilge pump switch support?

This float switch supports twelve volts, twenty-four volts, and thirty-two volts bilge pumps.

How does the bilge pump float switch operate?

The switch activates the pump when the water level reaches two inches and turns it off when the level drops to three-quarters of an inch.

Is this float switch easy to install?

Yes, it is designed for straightforward installation with clear instructions provided.

Can I use this switch with any bilge pump?

Yes, it has a universal design that works with all twelve volt, twenty-four volt, and thirty-two volt bilge pumps.

How should I maintain the bilge pump float switch?

To maintain it, ensure the electrical connections are waterproof and inspect the switch regularly for any signs of wear.

Is this bilge pump float switch safe to use?

Yes, it is safer than traditional mercury switches due to its mercury-free rolling ball mechanism.

What is the maximum amperage for different voltage levels?

The maximum amperage is thirty amps at twelve volts, fifteen amps at twenty-four volts, and twelve amps at thirty-two volts.

Does the float switch come with a warranty?

Yes, it typically comes with a manufacturer's warranty, but specifics should be checked with the retailer.

What should I do if the float switch does not activate?

Check the power supply and ensure that the water level is sufficient to trigger the switch.

Can the bilge pump float switch handle rough conditions?

Yes, it is designed for tough applications and is made from rugged materials to withstand harsh marine environments.

How long is the wire attached to the float switch?

The wire length is one meter, providing ample length for installation in most bilge setups.

Is the bilge pump float switch suitable for freshwater and saltwater use?

Yes, it is suitable for both freshwater and saltwater environments.

What features make this float switch more reliable?

It includes an exclusive anti-spike feature to prevent rapid on/off cycling, enhancing its reliability.

Creatorele Dc 12V 24V 32V Automatic Boat Bilge Float Switch Bilge Switches Flow Sensor For Automatic Electric Water Pump

$18.74 USD

$18.74 USD $26.77 USD

Creatorele Dc 12V 24V 32V Automatic Boat Bilge Float Switch Bilge Switches Flow Sensor For Automatic Electric Water Pump

$18.74 USD

$18.74 USD $26.77 USD

SKU: WBSPTB07CL7NDDY

Brand: Creatorele

Availability: In Stock

Sold by Onlinesportsmall, an authorized reseller.

Returns accepted within 15 days | support@onlinesportsmall.com

Verified

Shipping Information

Free Standard Shipping — United States only
Processing Time: 1–3 business days
Estimated Delivery: 3–5 business days after dispatch
Double-boxed, fully insured & discreetly packaged
Tracking number sent via email once dispatched
Orders over $250 require signature upon delivery. Taxes calculated at checkout.

Returns & Refund

Returns accepted within 15 days of delivery.

Damaged or Defective Item

Free return shipping + replacement or full refund

Wrong Item Received

Free return shipping + replacement or full refund

Change of Mind

Return shipping at customer's expense · 25% restocking fee applies

All returns require a Return Authorization (RA) number before sending.

To initiate a return, contact us:

support@onlinesportsmall.com +1 (832) 344-5453

View Full Return & Refund Policy

Description

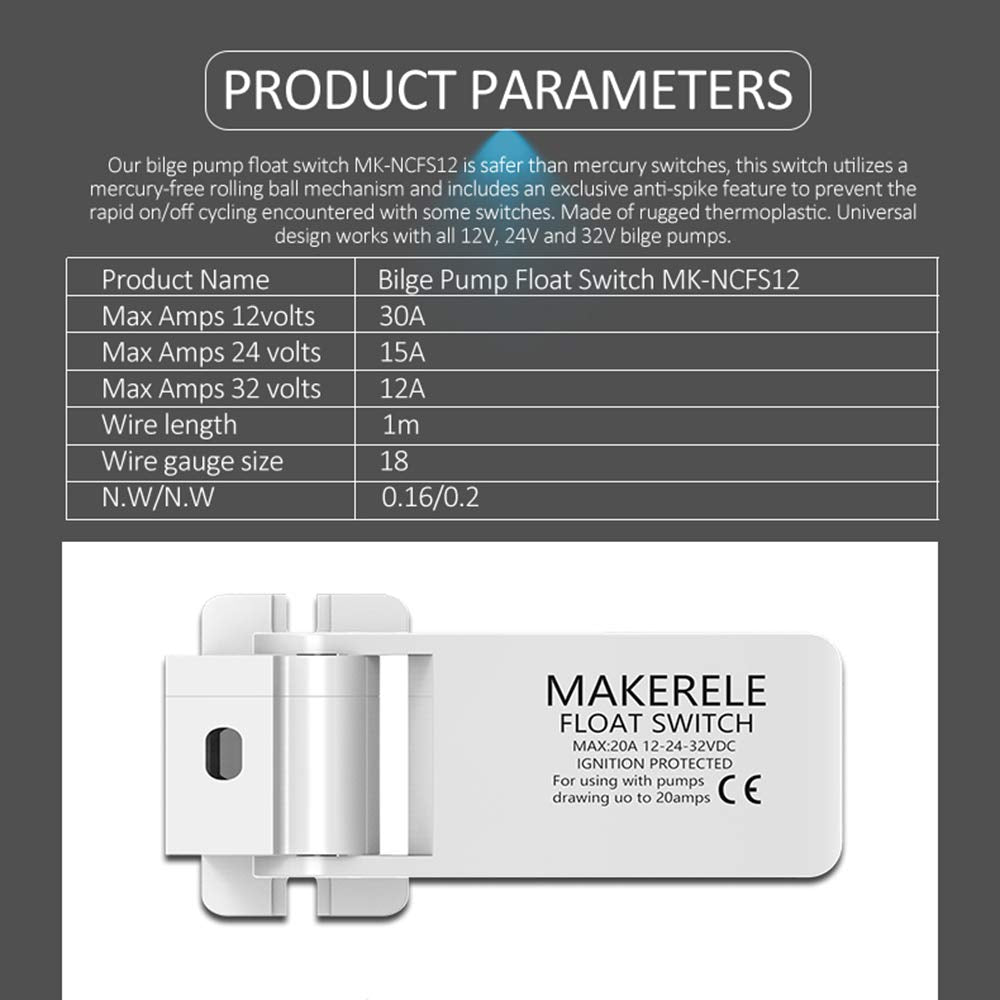

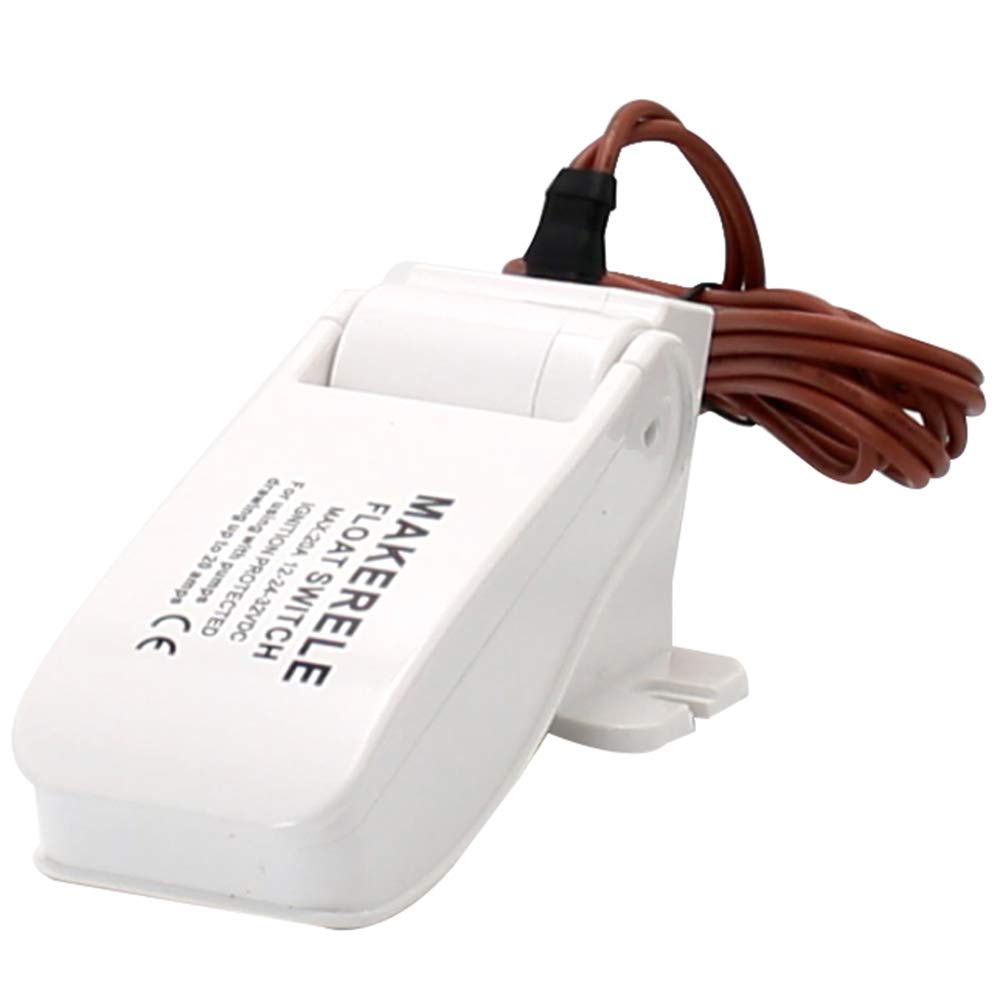

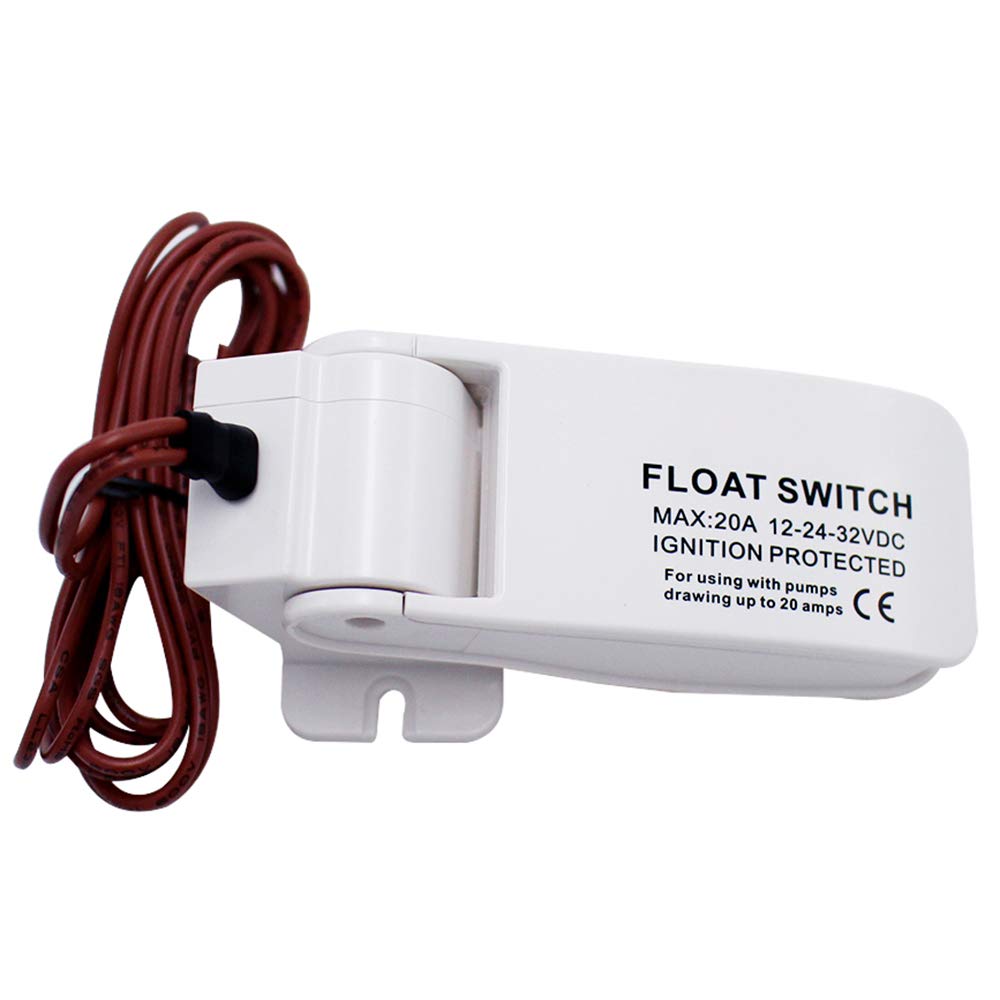

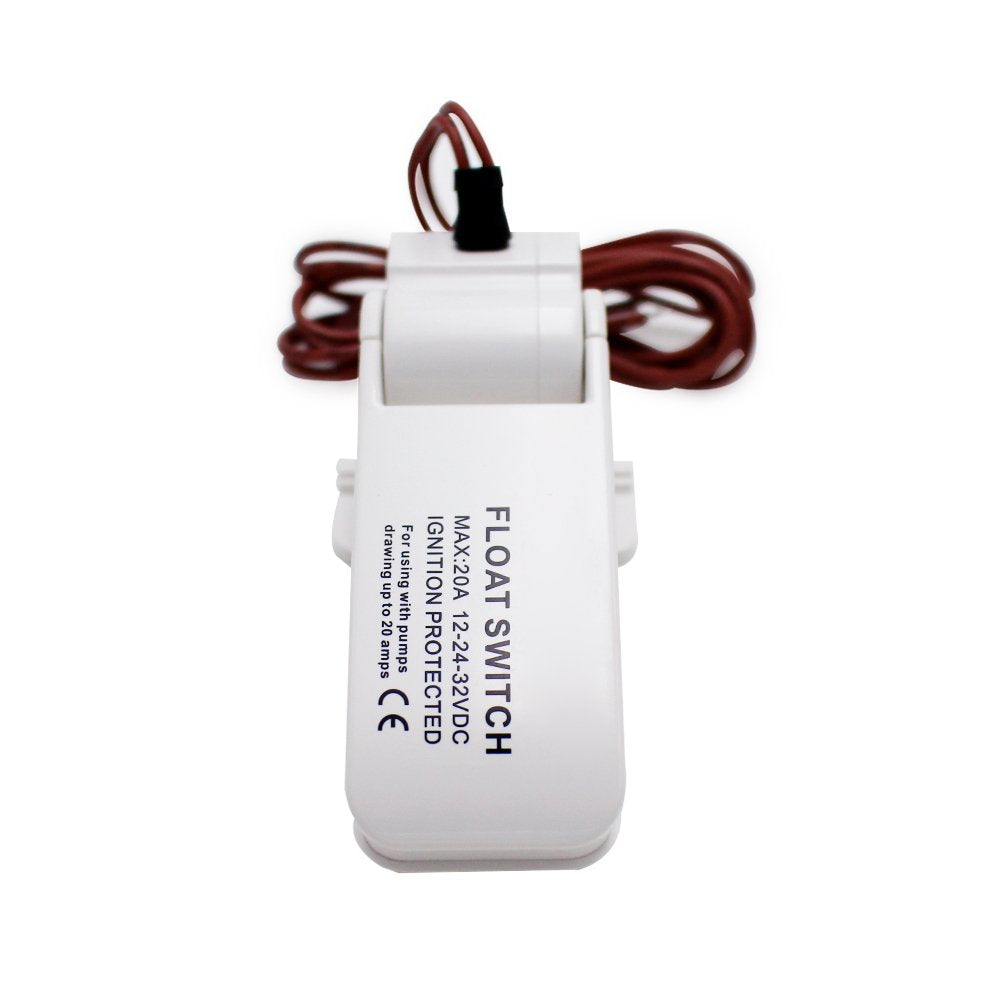

Bilge Pump Float Switch MK-NcFS12 A bilge pump float switch is a smart device used in boats that turns on a bilge pump when the water in the bilge reaches a certain level It is a must-have in any boat that is left unattended for any length of time, as all boats tend to leak at least some water This switch is submerged, so you need to waterproof the electrical connections and hang the wires to ensure they stay as dry as possible Ideal flow sensor for bilge pumps Heavy duty flow switch is designed for the toughest applications Our bilge pump float switch MK-NcFS12 is safer than mercury switches, this switch utilizes a mercury-free rolling ball mechanism and includes an exclusive anti-spike feature to prevent the rapid onoff cycling encountered with some switches Made of rugged thermoplastic Universal design works with all 12V, 24V and 32V bilge pumps 1 Turn pump on when water level reaches 2AA (51mm) 2 Turn pump off when water level reaches 34AA (19mm) 3 Ideal flow sensor for bilge pumps 4 Heavy duty flow switch is designed for the toughest applications Product Name Bilge Pump Float Switch MK-NcFS12 Max Amps 12volts 30A Max Amps 24 volts 15A Max Amps 32 volts 12A Wire length 1m Wire gauge size 18 NWNW 01602

Frequently Asked Questions

Q: What are the dimensions of the bilge pump float switch? A: The dimensions are three point nine four inches in length, one point one eight inches in width, and one point nine seven inches in height.
Q: What material is the bilge pump float switch made from? A: It is made from Acrylonitrile Butadiene Styrene, which is known for its strength and durability.
Q: What voltage levels does the bilge pump switch support? A: This float switch supports twelve volts, twenty-four volts, and thirty-two volts bilge pumps.
Q: How does the bilge pump float switch operate? A: The switch activates the pump when the water level reaches two inches and turns it off when the level drops to three-quarters of an inch.
Q: Is this float switch easy to install? A: Yes, it is designed for straightforward installation with clear instructions provided.
Q: Can I use this switch with any bilge pump? A: Yes, it has a universal design that works with all twelve volt, twenty-four volt, and thirty-two volt bilge pumps.
Q: How should I maintain the bilge pump float switch? A: To maintain it, ensure the electrical connections are waterproof and inspect the switch regularly for any signs of wear.
Q: Is this bilge pump float switch safe to use? A: Yes, it is safer than traditional mercury switches due to its mercury-free rolling ball mechanism.
Q: What is the maximum amperage for different voltage levels? A: The maximum amperage is thirty amps at twelve volts, fifteen amps at twenty-four volts, and twelve amps at thirty-two volts.
Q: Does the float switch come with a warranty? A: Yes, it typically comes with a manufacturer's warranty, but specifics should be checked with the retailer.
Q: What should I do if the float switch does not activate? A: Check the power supply and ensure that the water level is sufficient to trigger the switch.
Q: Can the bilge pump float switch handle rough conditions? A: Yes, it is designed for tough applications and is made from rugged materials to withstand harsh marine environments.
Q: How long is the wire attached to the float switch? A: The wire length is one meter, providing ample length for installation in most bilge setups.
Q: Is the bilge pump float switch suitable for freshwater and saltwater use? A: Yes, it is suitable for both freshwater and saltwater environments.
Q: What features make this float switch more reliable? A: It includes an exclusive anti-spike feature to prevent rapid on/off cycling, enhancing its reliability.
